A GNN reads 431× more off the SSD than it needs — watch it, then replay it without the data

Note

A styled standalone version of this page (identical content, dark theme) is served at /showcase/gnn-readamp.html and via htmlpreview from the repository’s docs/gnn-readamp.html.

Read amplification of a real financial-fraud graph neural network, captured at the NVMe device layer with eBPF, laid out A/B against the architectural fix, and reproduced from a fio iolog that carries no application data at all. Same tracing stack as the kvio KV-offload work — one layer down, on plain block IO.

dataset DGraphFin · 3.7M nodes drive Samsung 9100 PRO Gen5 tracer nvme_tp_monitor RA 431× → 8.6× replay fidelity +0.0%

The gap between two witnesses

Every storage workload has two witnesses to the same events, and neither tells the whole truth alone. The application knows intent — “these 2.6 MB of node features are what I actually consume.” The device knows mechanism — “1140 MB of 4 KiB pages crossed the PCIe bus.” Read amplification is the gap between them.

A GNN that offloads node features to an SSD is the textbook case. Each feature vector is 17 floats — 68 bytes. But storage is paged: a single scattered neighbor drags a whole 4 KiB page for that 68 bytes. Sample a batch of neighbors that land on 240,000 different pages and the device moves a gigabyte to feed a workload that consumes a couple of megabytes. The in-RAM counter can model this; eBPF at the nvme tracepoints proves it — and here the device-side count matched the store’s own read count to the command (240,698 vs 240,698 reads).

intent witness

The driver emits its useful feature bytes on a CLOCK_MONOTONIC axis — what the GNN actually consumes.

mechanism witness

nvme_tp_monitor records every device command on the same clock — slba, bytes, completion latency. No user_data needed; this is plain O_DIRECT block IO.

the gap is the story

Lay the two on one timeline and the read amplification is not a statistic — it is the visible distance between two curves.

The A/B: naive access vs the architectural fix

The same features, the same SSD, the same 3.7M-node graph. The only thing that changes is the access pattern. NeighborLoader samples neighbors and reads each one’s page individually. Page-Aware batching — a knlp engineering fix — reads pages whole and uses every node on them. That one change cuts device traffic ~50× for the identical GNN signal, and it generalizes to any GNN (or KV cache) that offloads to storage.

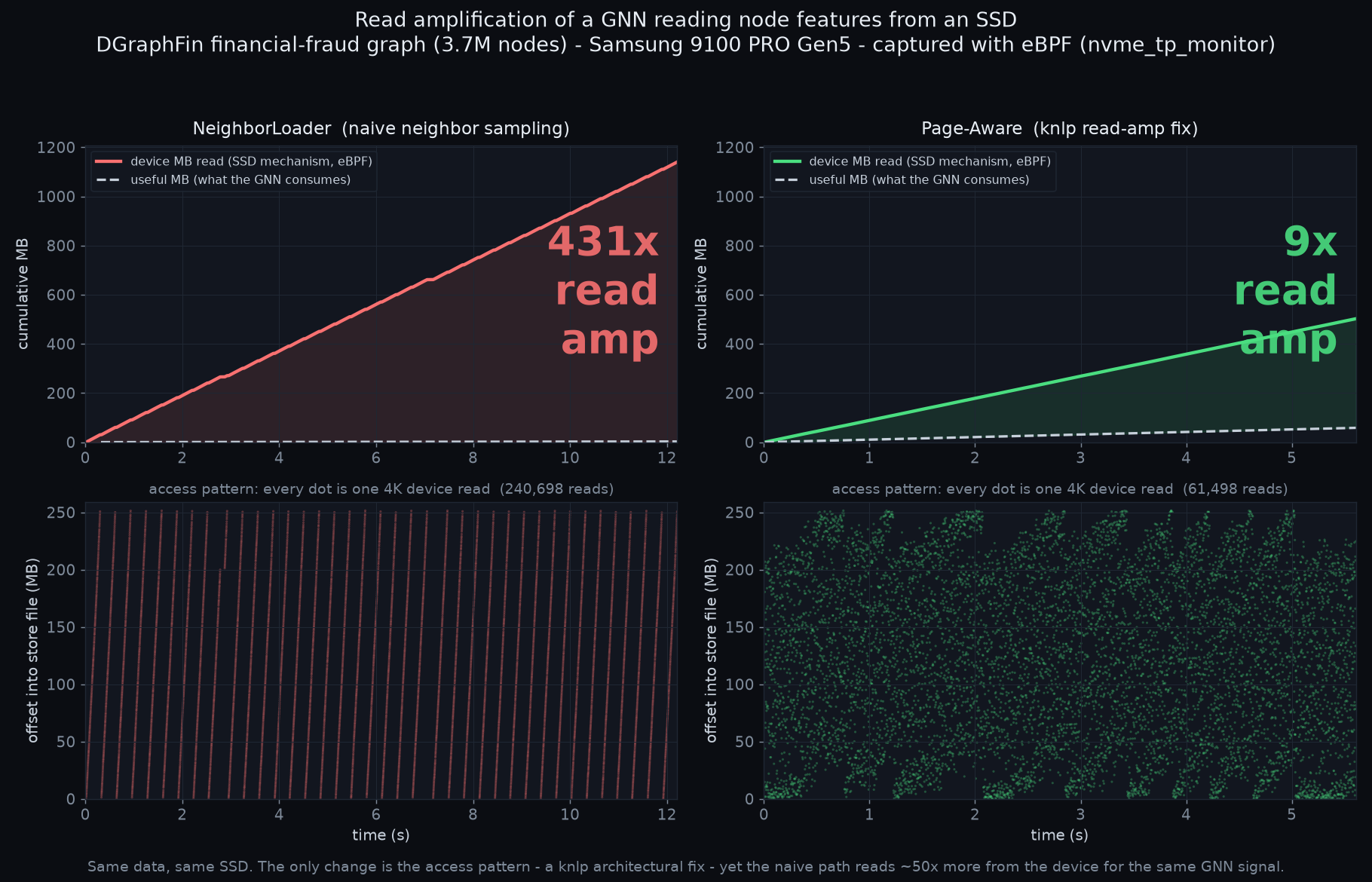

Top: cumulative device MB read (mechanism) against useful MB the GNN consumes (intent) — the shaded gap is the amplification. Bottom: every dot is one 4 KiB device read into the 250 MB store file — the naive path sweeps the whole file repeatedly; page-aware is a far smaller, denser cloud.

arm	useful (intent)	device read (eBPF)	RA_signal	RA_fetch
NeighborLoader — naive neighbor sampling	2.65 MB	1140 MB · 240,698 reads	431×	~57×
Page-Aware — knlp read-amp fix	58.3 MB	502 MB · 61,498 reads	8.6×	~2×

RA_signal = device bytes / useful feature bytes (vs what the model consumes). RA_fetch = device bytes / minimal pages needed (the store’s own ra_physical: the page-granularity tax even after you account for necessary paging). Both are honest; RA_signal is the end-to-end number a workload actually pays.

What the Perfetto timeline shows

Drag gnn_readamp_dgraphfin_ab.pftrace.gz onto ui.perfetto.dev (local WASM; nothing uploads). Each arm is a process group rebased to t=0, so naive and page-aware sit side by side. Per arm:

counter	what it shows
useful MB (intent)	the feature bytes the GNN consumes — the denominator of read amplification
device MB, store count	the store’s own read accounting (intent side)
device MB, eBPF	the independent device-side truth — it tracks the store count, which is the capture verifying itself
read amplification ×	device MB / useful MB, running: 431× vs 8.6×
device LBA (sector)	slba over time — the access pattern: scatter for poor locality, banded for good

The useful curve sitting far below device is the amplification. The two device curves coinciding is the honesty check: the eBPF witness and the application’s self-report agree, so the huge number is not an artifact of either one.

Capture a confidential workload, share only the shape

This is why the capture matters beyond a pretty chart. A device capture — and the fio iolog made from it — carries only IO shape: operation, offset, length, timing. No feature values, no node ids, no graph, no keys.

So a third party can run their confidential GNN — real financial-fraud data, private customer graph — capture it with these tracers, and hand back a trace or an iolog that we replay and visualize to reproduce the exact device read pattern without ever seeing their data. mk_dev_iolog.py turns the capture into a fio v3 iolog:

nbr.iolog — 240,698 lines, and nothing but IO shapefio version 3 iolog
0 /dev/nvme0n1 add
0 /dev/nvme0n1 open
0 /dev/nvme0n1 read 3451445895168 4096
0 /dev/nvme0n1 read 3451445907456 4096
0 /dev/nvme0n1 read 3451445919744 4096
... 240,695 more reads: offset + length + time only ...

Replayed read-only with fio --read_iolog --direct=1 and refereed against the original capture by compare_streams.py, the reproduction is exact:

	commands	bytes	size mix
original capture	240,698	1140 MB	4K:208136 8K:28196 12K:3749
replay from iolog	240,702	1140 MB	4K:208138 8K:28198 12K:3749
inflation	+0.0%	+0.0%	identical

100% of the original commands reproduced at identical offset and size, from an artifact that contains none of the data.

public stand-in DGraphFin is a public dataset; it plays the role of the confidential graph here so the whole pipeline is reproducible. The privacy property is a property of the method — the capture and iolog carry only shape — not of this particular dataset.

honest gap Command-stream fidelity (count, sizes, offsets) is what is validated at +0.0%. fio’s replay of v3 timestamps is not yet pinned, so treat the replay as the workload’s command stream at the rig’s speed, not its original pacing. And fidelity must be judged at the device layer: a perfect file-level operation log can still produce an 8× different device stream through the page cache — see the replay README.

Reproduce it

Full recipe in tools/reproduce/gnn-readamp/. The shape of it:

capture → convert → visualize → replay# 1. capture both arms at the device layer (knlp force-SSD store, O_DIRECT)
./cap_ssd.sh neighbor natural 12 /tmp/nbr
./cap_ssd.sh page     natural 12 /tmp/page

# 2. A/B onto one Perfetto timeline
python3 examples/replay/readamp2perfetto.py \
  --arm "NeighborLoader (naive):/tmp/nbr.jsonl:/tmp/nbr.phase.txt" \
  --arm "Page-Aware (knlp fix):/tmp/page.jsonl:/tmp/page.phase.txt" \
  -o gnn_readamp_ab.pftrace

# 3. data-free replay + fidelity referee
python3 examples/replay/mk_dev_iolog.py /tmp/nbr_reads.jsonl /dev/nvme0n1 > nbr.iolog
sudo fio --name=replay --filename=/dev/nvme0n1 --readonly --direct=1 \
         --ioengine=psync --read_iolog=nbr.iolog

Where the pieces live

Two trees, one boundary. The tools and this value showcase live in ebpf-syscall; the ready-to-view demo trace lives in the gallery as a data artifact.

• ebpf-syscall — the tracer (nvme_tp_monitor), the converter (examples/replay/readamp2perfetto.py), the replay tools (mk_dev_iolog.py, compare_streams.py), the reproduce recipe (tools/reproduce/gnn-readamp/), and this page.

• kvio-perfetto-gallery — the draggable traces/gnn_readamp_dgraphfin_ab.pftrace.gz plus its figure and machine-readable report. A demo artifact; it links back here for the story.

GNN read amplification — capture, visualize, and privacy-preserving replay tools: nvme_tp_monitor · readamp2perfetto.py · mk_dev_iolog.py
